Full Automation With IFlash 3000
As one of the highest throughput CLIA analyzer, iFlash 3000 is perfectly suitable for the central lab. Workstation consolidation on one platform. Improved efficiency , productivity and quality together with reduced lab costs. Non tip system, no extra consumables, no carry overs, no repeats, minimal analytical error, less sample splitting, classical ELISA waste elimination, one analyzer consolidation different disciplines' workflows Fast and effective differential diagnosis, more results in the time unit Effective STAT design, up to 300 tests/hour, more test/time unit when compared to similar analyzers Consolidates rsults report, one review station for different disciplines, simultaneous evaluations of all testsof one sample, less mistakes, less rework
Reducing The Analytical Process Inefficiencies
Features:
230 incubation positions. 2000 reation vessels, randomly loaded any time. 140 sample positions including 15 STAT positions in a continuously robotic transfer. Sample rack tray (5 racks/tray) with a hand holder
Attributes:
More samples in incubation at a time unit. Reloading with no analysis interruption
Eliminating The Analytical Down Time

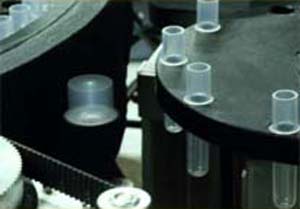

Features:
Continuous loading of samples, reagents and consumables. Advanced robotic reaction vessel loading system. Continuous magnetic particles mixing. No chain for reaction vessel loading
Attributes:
No delays, more results at a time unit
Work Station Consolidation
Features:
119 different reagents for different diagnostic fields 30 reagent positions with onboard storage
Attributes:
Less sample splitting. Less analyticl cycles for one job list. Less manual handling & interruption

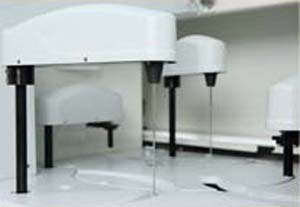

The Sampling System
Features:
119 different reagents. Up to 300 tests/hour. 12 mins to first result, 12 secs to second result. 140 samples (15 stat positions) continuous loading. Sample rack tray (5 rack/try) with a hand holder
Attributes:
Less sample splitting. Faster analysis start up
The Sampling System...And More
Features:
Inner and outer probe surface cleaning. Accuracy of liquid aspiration up to 1 micro-L. Liquid level detection, clot detection, empty suction detection, horizontal and vertical crash protection, air bubbles detection
Attributes:
No carry over. No repeats. No interruption
The Mixing System
Features:
Non-contact eccentric vortex mixing. Automatic speed detection function
Attributes:
No carry over. No repeats.
The Software
Features:
One results report for different diagnostic fields. Effective resources management, Operational Intelligence
Attributes:
Workflow optimization.
The Magnetic Separation System
Features:
Teflon coated probes. Inner & outer probes surface cleaning. 1 micro-m microparticle solid phase. Optimaized magnetic field. 4 steps magnetic separation
Attributes:
Reduced cros contaminations. Reduced loss of magnetic beads
Vortex
Features:
Non-contact eccentric vortex mixing. Automatic detection of rotation speed
Attributes:
High mixing efficiency

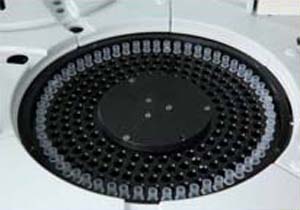

The Cuvette Carrousel
Features:
Constant temperature control. Fluctuation within +/- 0.1 Cel. Degree
Attributes:
Stable reation conditions

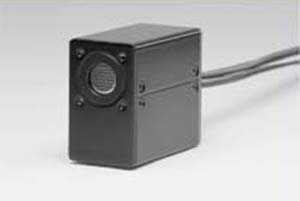

The Photometric System
Features:
Acridinium ester labeling. Independent photometric reading station. Multiple lightproof structure
Attributes:
Higher signal to noise ratio. Eliminate ambient light interference
