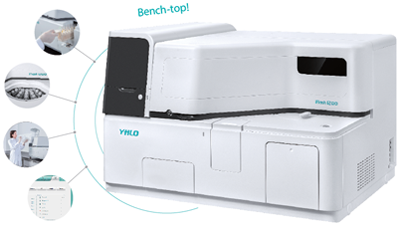

iStar 500
Monotest CLIA System
Primary Parameters

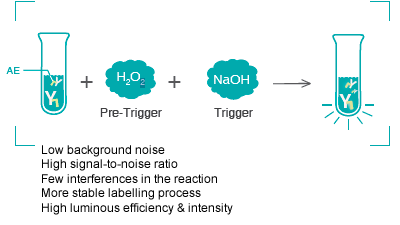

| Detection priciple | Magnetic particle-based direct chemiluminescence |
| Luminescence label | Acridinium ester |
| Test Method | Sandwich, competitive, indirect |
| Throughput | Up to 36 tests/h |
| Standby time | 24 hours |
| Time to first result | 11 minutes |
| Reagents position | 12 positions onboard |
| Sample position | 5 positions onboard |
| Sample type | Serum, plasma, urine and others |
| Sample delivery system | Continuous sample loading track |
| Mixing system | Non-contact ecentric vortex mixer |
| Magnetic separation | 4-step magnetic separation |
| Loading vessels | 48 positions onboard |
| Incubation plate capacity | 24 positions |
Operation system
| Touch Screen | 10.1 inch touch screen |
| Operation system | Linux |
| Operation language | Multiple languages |
| Output interface | 3 USB, 1 TCP/IP, 1 COM |
Operating conditions
| Power supply | 100~240V, 50/60Hz |
| Ambient temperature | 15~30°C |
| Physical dimensions | 550mm(W)X570mm(L)X680mm(H) |
| Weight | 55kg |
